Leggings TECH PACK

Adobe illustrator Tech Pack Template - (ai & pdf)
Adobe photoshop & jpeg files included (psd & jpeg)

Flat technical illustration.
2D Mockup drawing

Complete tights Tech Pack for adobe illustrator & photoshop ( ai, psd, pdf & jpeg ).
The template is industry-standard for the textile industry.
Perfect for fashion designing and fashion CAD, fashion design templates, and working with suppliers.
This file includes a complete size chart and a BOM overview for factory specs and packing info for shipping. The File is fully editable but a basic knowledge of adobe software is advised.

This is intended for sending to manufacturers and suppliers:

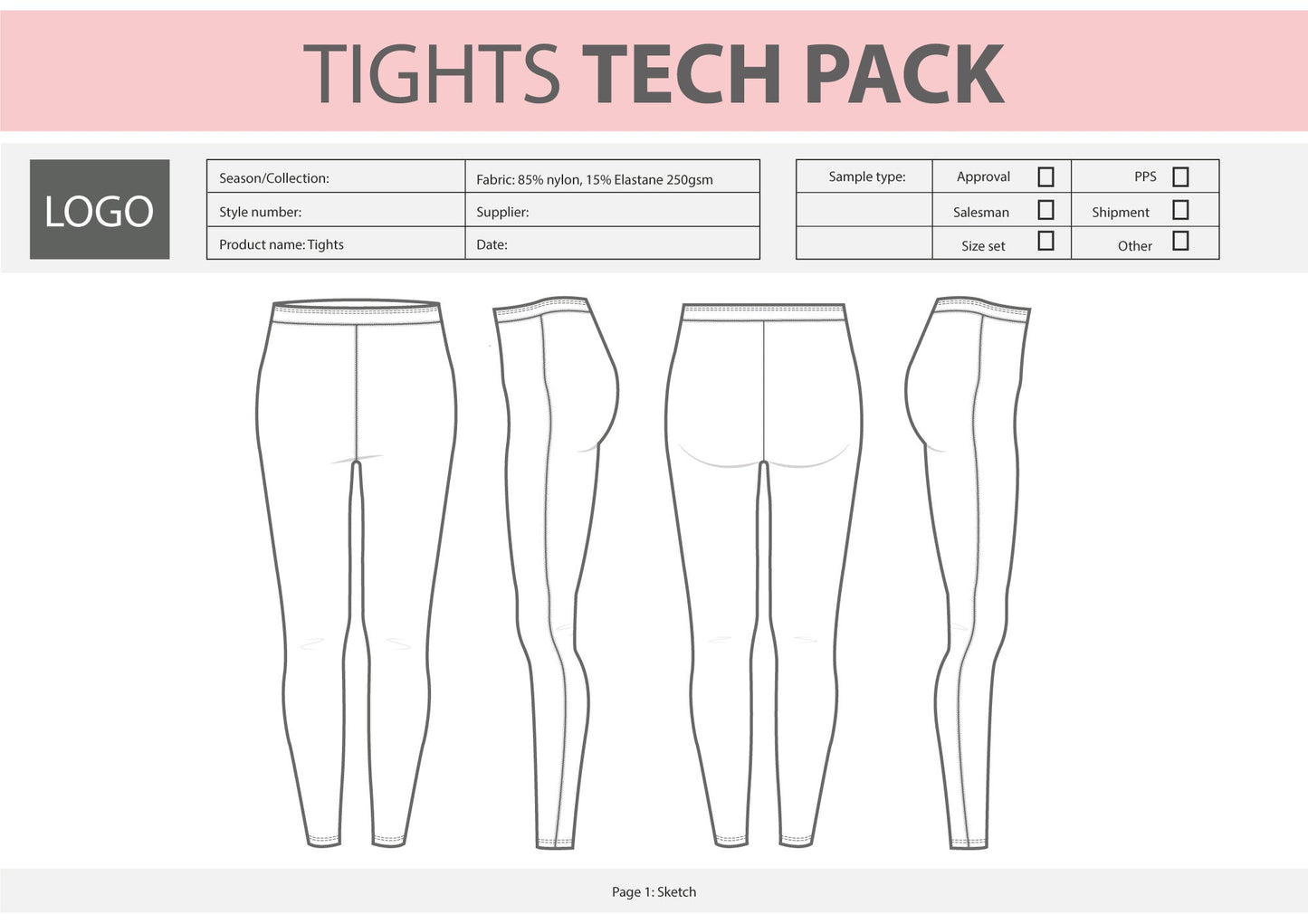

Page 1: Sketch - black & white illustration

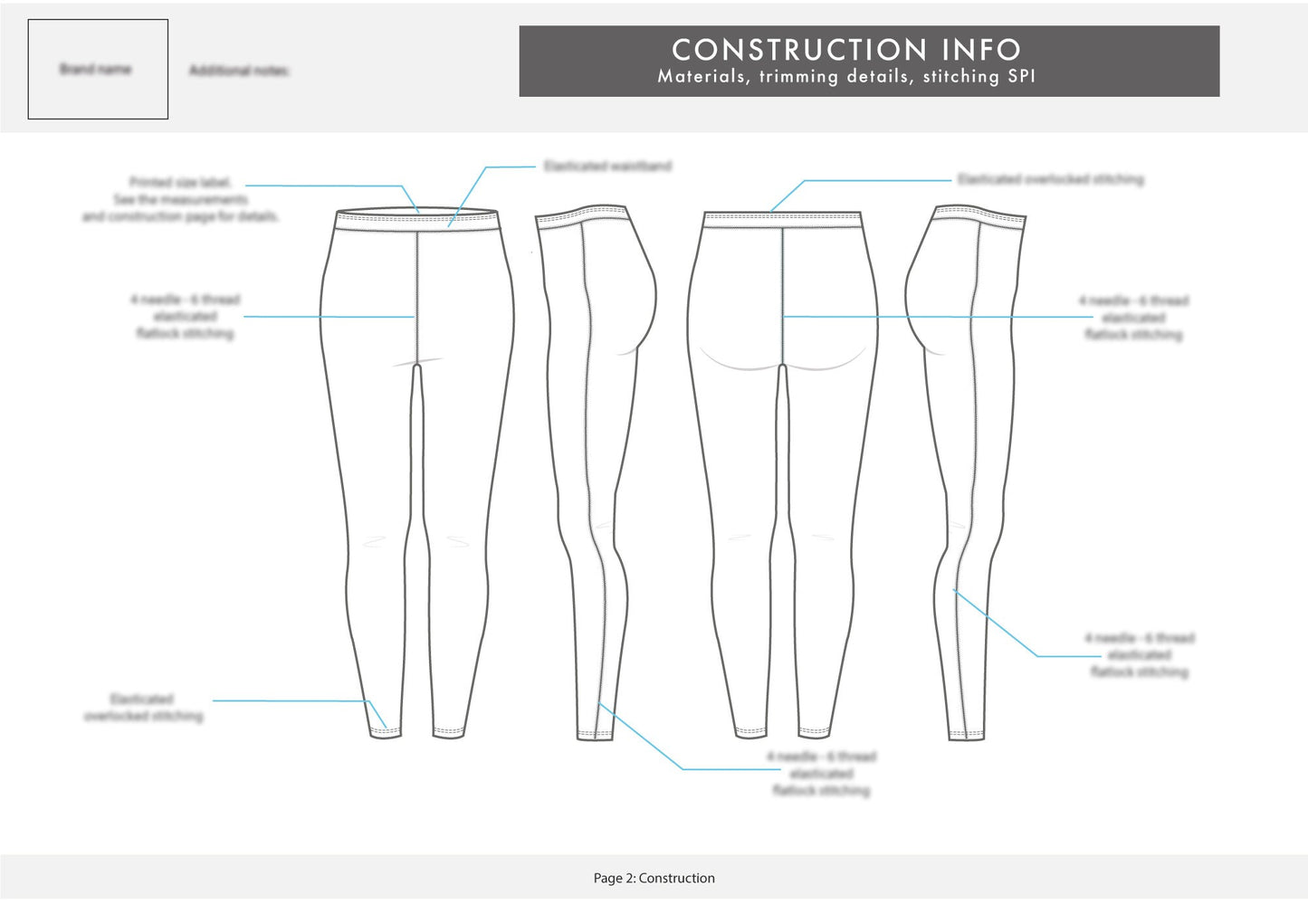

Page 2: Construction details: detailed info for a supplier with correct workmanship; stitching type, etc.

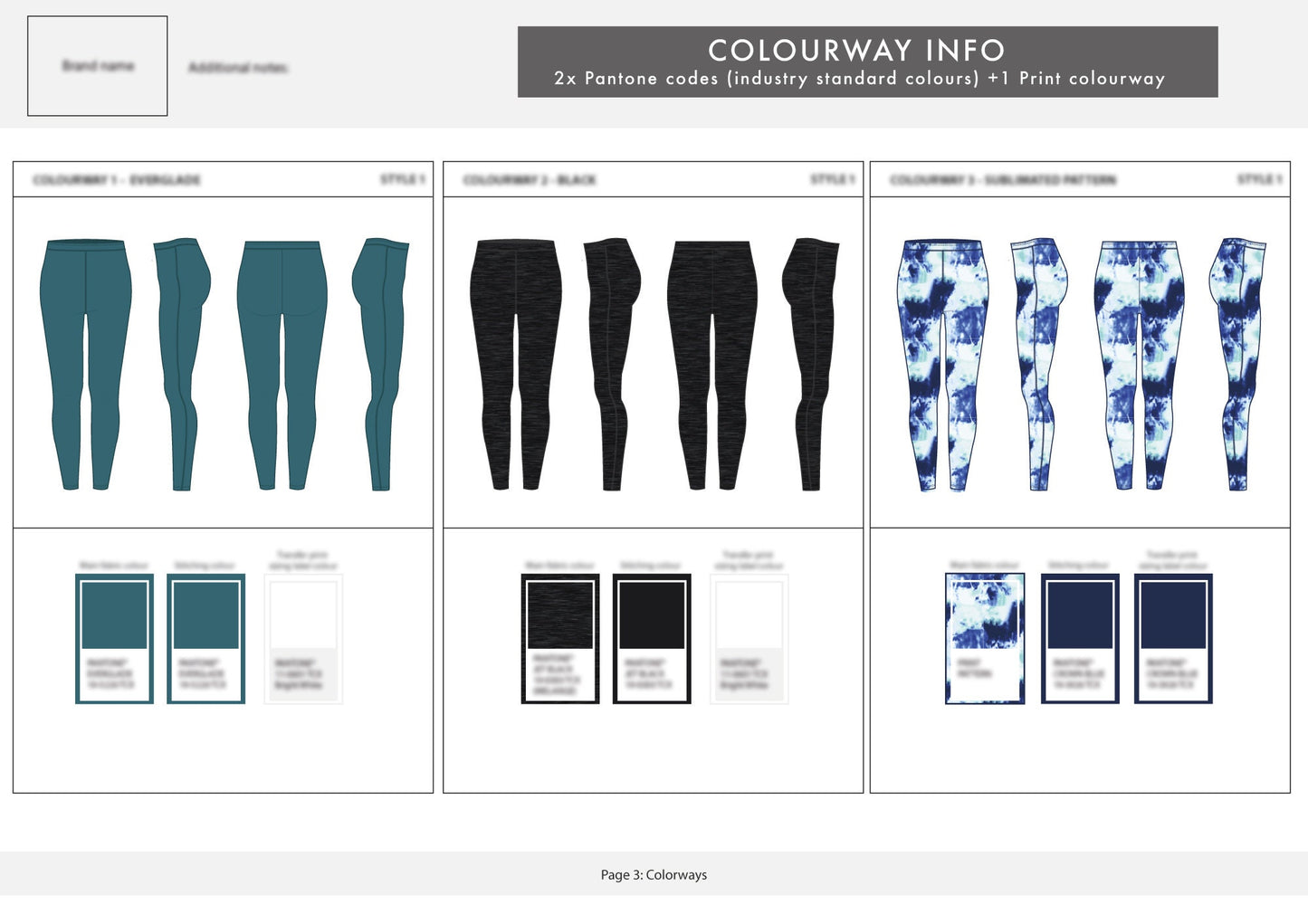

Page 3: 2 colorways with industry-standard color codes included.
Page 4: Optional graphic pattern info, quality and measurements.
Page 5: Womens sizechart with correct measurements for sizes graded from XS to 3XL.
Page 6: BOM - Bill of material with expected trimmings and packaging costs included.
Page 7: Printed label construction info.
Page 8: Care label construction info.
Page 9: Hangtag measurements, paper quality, swift-tach, and placement.
Page 10: Master carton id info and polybag shipping requirements.

PSD file of the print pattern for colourway 3 is also included for free.

You are very welcome to email me if you need any info.
